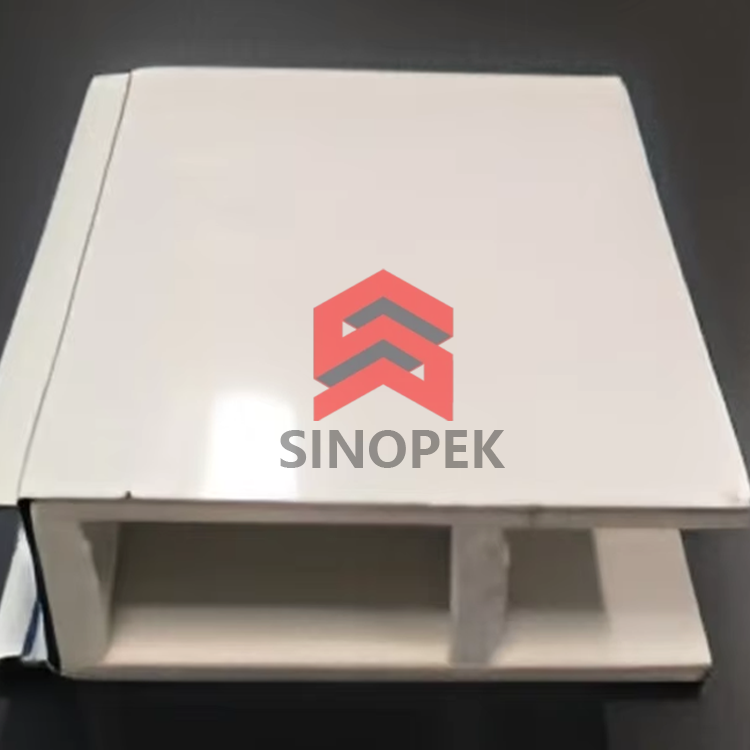

【Innovative Fireproof Technology: Hollow Fiberglass Magnesium Oxide Sandwich Panel】
Using a new generation of hollow fiberglass magnesium oxide board as the core material, double-sided composite high-strength galvanized steel/color-coated steel sheet, formed in one piece by automated equipment, creating a high-end building material product with excellent fireproof performance and long-term stability.
1. Innovative Structural Design
Utilizing a lightweight composite structure design, effectively reducing the building foundation load.
Thin wall solutions can increase usable indoor area by 5%-8%.
2. Integrated Functional Features
Multi-layer composite structure provides Class A fire resistance, sound insulation Rw≥40dB, and comprehensive performance in terms of earthquake and impact resistance.
Built-in antibacterial and anti-mildew treatment, meeting green building material health standards.
Pre-fabricated conduit channel design enables concealed installation of strong and weak current systems.
3. Flexible System Adaptability
The modular connection system supports rapid reconfiguration and reuse of non-load-bearing walls.
Dry construction achieves zero wet work and zero construction waste on site.
4. Highly Efficient Construction System
Factory prefabrication rate exceeds 85%, on-site assembly efficiency increased by 70%
Standardized installation process shortens construction time by 50%-60%
Immediate use capability allows for space function conversion within 24 hours
5. Sustainability Advantages
Material recycling rate exceeds 90%
Carbon emissions during construction reduced by over 65%
Total life cycle cost reduced by 30% compared to traditional building materials
6. Application Performance
Sound Insulation: Weighted sound insulation up to 52dB
Fire Resistance: Fire resistance limit of some specifications reaches 120 minutes
Thermal Performance: Thermal conductivity less than 0.045W/(m·K)
| Width |
1150mm
|
| Thickness |
50,75, 100mm
|
