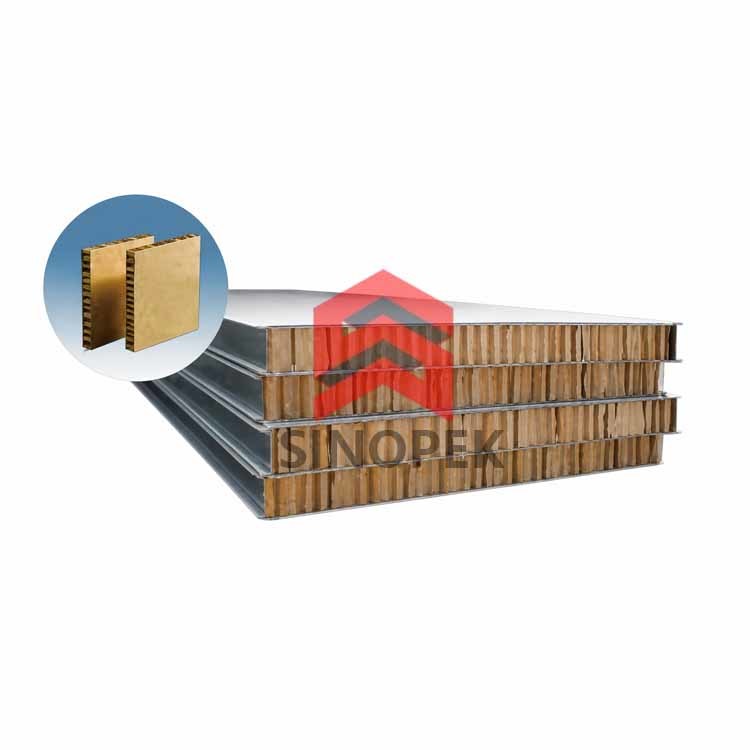

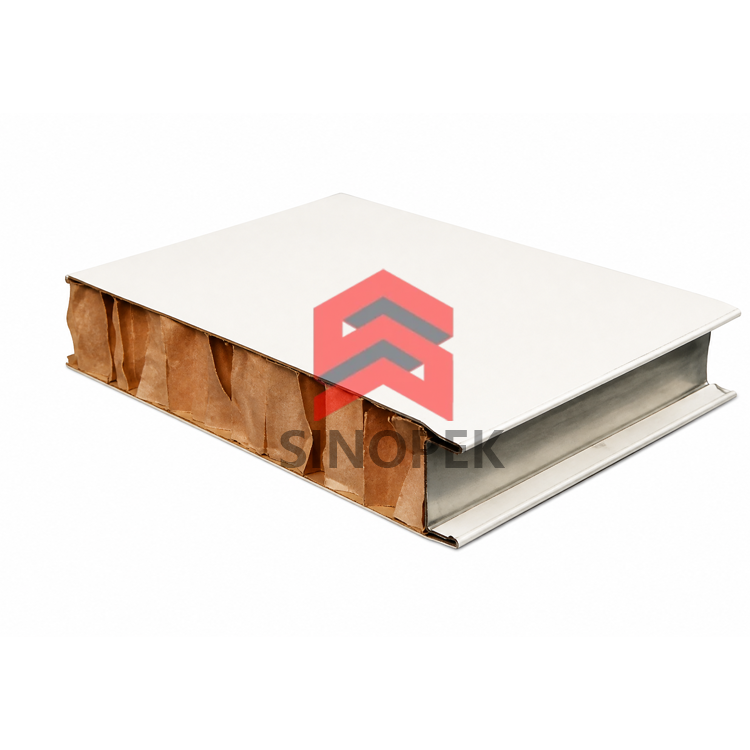

Machine-made Paper Honeycomb Cleanroom Panel | Lightweight & Economical Panels
Paper honeycomb sandwich color-coated steel panels are ultra-lightweight construction panels composed of color-coated steel facings and a paper honeycomb core, bonded together under heat and pressure using thermosetting adhesive in a continuous forming machine. These panels feature low self-weight, excellent partitioning capabilities, effective sound insulation, and rapid installation.
| Width |
950,1150mm |
| Thickness |
50, 75, 100, 150, 200 mm |
| Length |
Custom-made according to project requirements and transportation conditions |
| Color |
Selected according to project requirements |
Ultra-lightweight Structure
Weighs only 40%–50% of comparable rock wool panels, significantly reducing structural loads and transportation costs.
Ideally suited for steel structures, prefabricated buildings, and renovation projects.
Superior Acoustic and Structural Performance
The honeycomb cavity structure provides natural acoustic damping, achieving a weighted sound insulation rating of 35–42 dB.
The hexagonal honeycomb structure ensures uniform load distribution, offering superior in-plane compressive strength compared to traditional infill materials.
The core material features excellent elasticity, effectively absorbing vibration and impact energy.
Environmental and Construction Advantages
The core is made from recycled paper-based materials, ensuring low production energy consumption and high recyclability.
Panels are easy to cut and process, supporting dry-construction methods and modular assembly.
The surface coating offers high flatness and is compatible with various edge-trimming systems to achieve a seamless visual finish.
Customization and Versatility
Supports specialized processing such as non-standard dimensions, curved panels, and custom cutouts.
Suitable for commercial partitions, exhibition displays, lightweight industrial facilities, logistics warehouses, and more.
Overall costs are lower than most traditional sandwich panel systems.
Applications:
Commercial and Office Spaces: Office partitions, shopping mall feature walls, hotel decorative surfaces
Exhibition and Display Systems: Exhibition booth construction, temporary showrooms, museum partitions
Light Industrial Buildings: Logistics warehouse partition walls, packaging workshops, non-high-temperature production areas
Cultural and Sports Facilities: Gymnasium interior partitions, theater acoustic paneling, training classrooms
Specialized Transport: RV interiors, lightweight partitions for ship cabins
